DC 5V SK6812 Individually Addressable LED Strip Light 5050 RGB 16.4 Feet (500cm) 60LED/Meter LED Pixel Flexible Tape White PCB. Plug and Play kit with all accessories in. With the controller in the kit, 132pre-set program the strip can play.

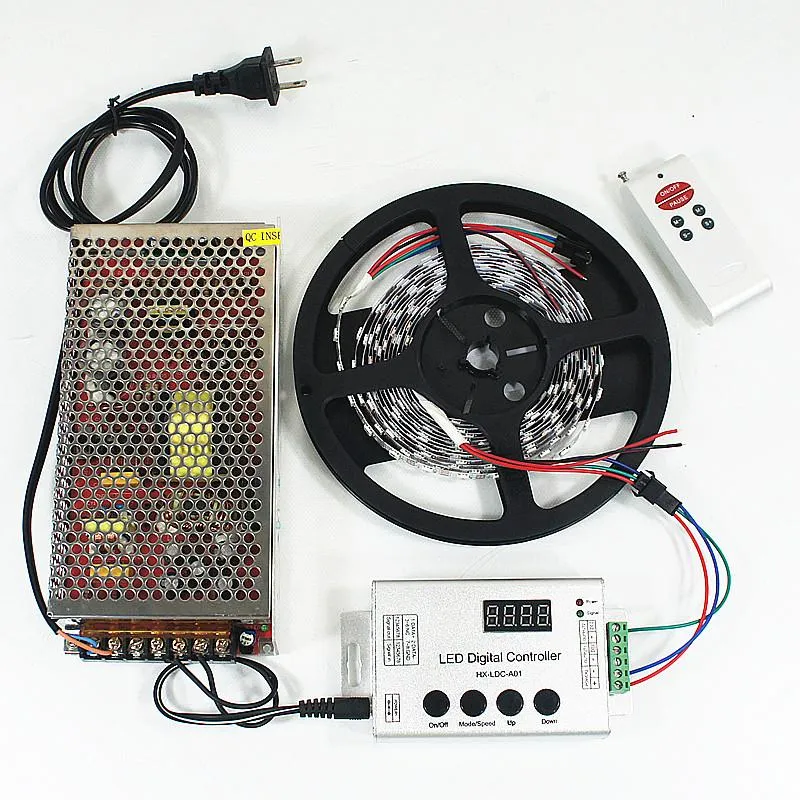

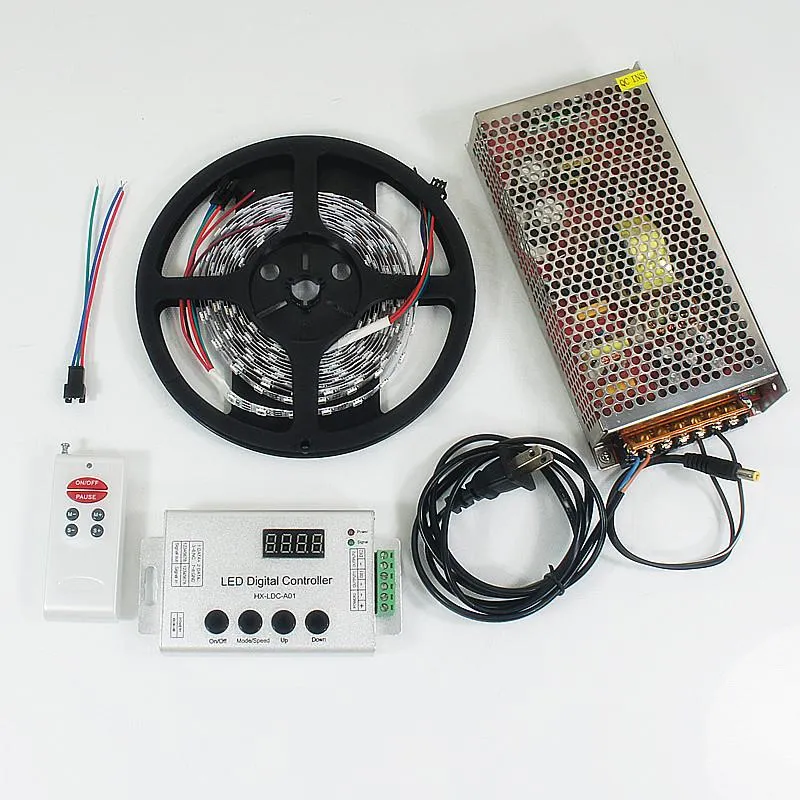

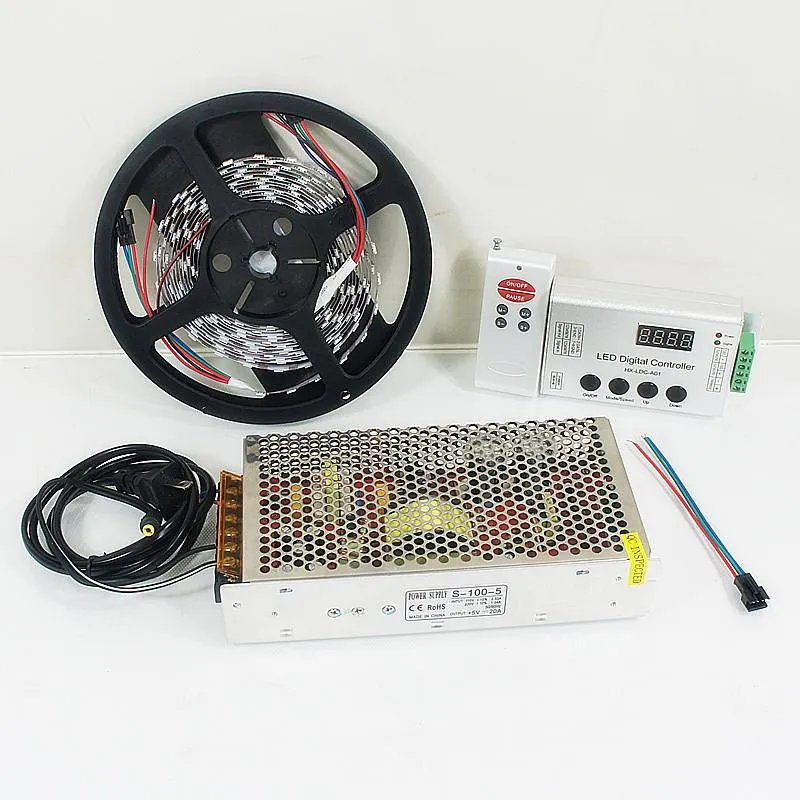

This 5050 60LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x SK6812 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 30LEDs
2. 1 x DC5V RF Dream Color RGB LED Strip Controller
3. 1 x DC5V 20Amp Power supply
4. 1 x 3pin SM Connector (10cm long)
5. 1 x DC male plug cable, 5.5x2.1mm (20cm long)
6. 1 x AC Power Plug Cord (100cm long)
This 5050 60LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x SK6812 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 30LEDs
2. 1 x DC5V RF Dream Color RGB LED Strip Controller
3. 1 x DC5V 20Amp Power supply
4. 1 x 3pin SM Connector (10cm long)
5. 1 x DC male plug cable, 5.5x2.1mm (20cm long)
6. 1 x AC Power Plug Cord (100cm long)
Item: DC 5V SK6812 Individually Addressable LED Strip Light 5050 IC SMD5050 Flexible LED Pixel Strip, 60LED/Mtr, 10Points/Mtr
Dimension: 5000*10*2.0(mm)
Power: 5DC
Wattage: 18W/Mtr
LED QTY.: 60LED/Mtr
IC QTY.: 10pcs/Mtr
Cutability: 3LED/cutting
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, IP65 Waterproof ,IP67 Waterproof
Packing:5Mtr/roll
Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection

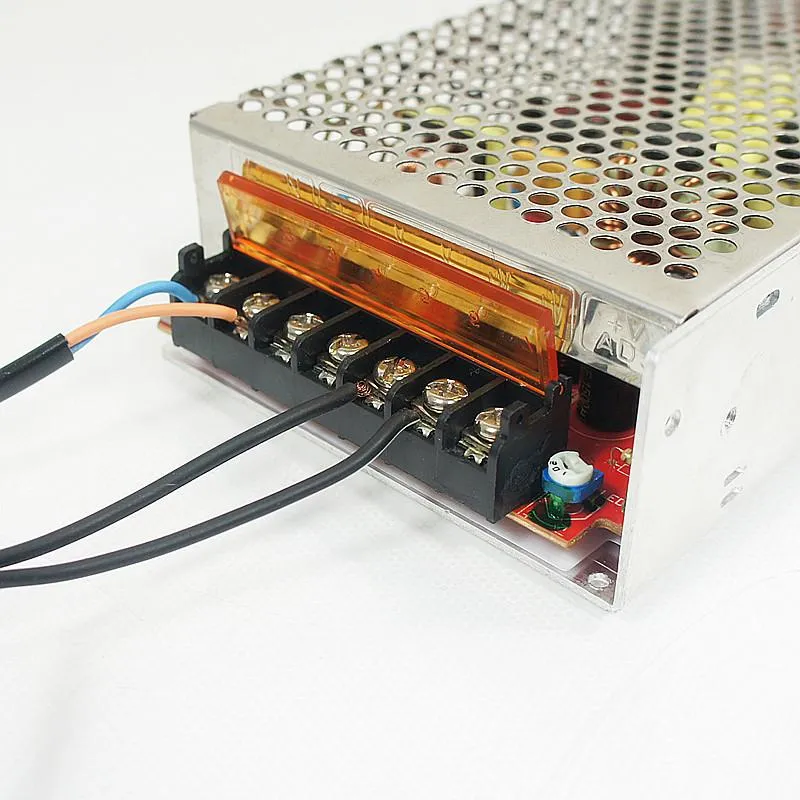

Specification of the 100Watt Transformer in the Kit:
The Input Voltage: 100-240VAC
Output voltage: 5V
Output current: 20A
Dimension(mm): 159*98*38 (mm)
Accessory: it comes with power plug suit to different country (Europe plug, US plug Italy Plug and so on).

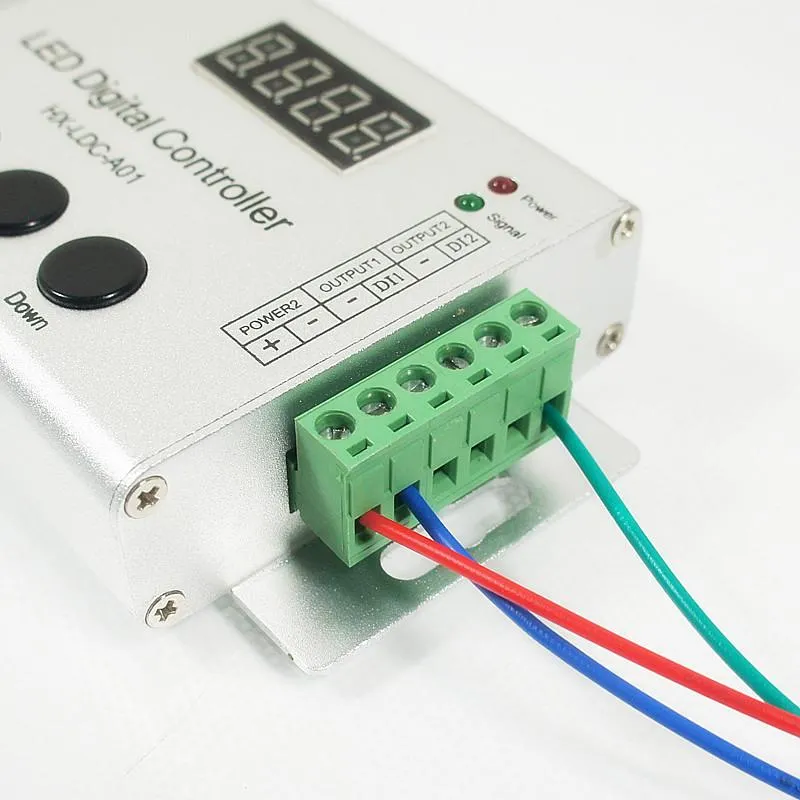

The RF Dream Color RGB Controller is the Dream Color Digital/SPI RF LED Controller - 5-24VDC / 2048 Pixels.
On/off：It can open or close output.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode /Speed button. When in mode regulator function, it is for “Mode ”. When in speed regulator function, it is for “Speed ”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Standard color changes as follows:
