Name: 1093 <br> Sportsman Pan
SKU: 195752

1093 <br> Sportsman Pan

$ 40.99

$ 53.29

Save: $

BlockConfiguration:

LeftorRightDipstick2PieceRearSeal19571985
RightDipstick1pieceRearSeal1986Up

Install1InspectionFitting:

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Pan Depth: 7”
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6 Liters)

Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)

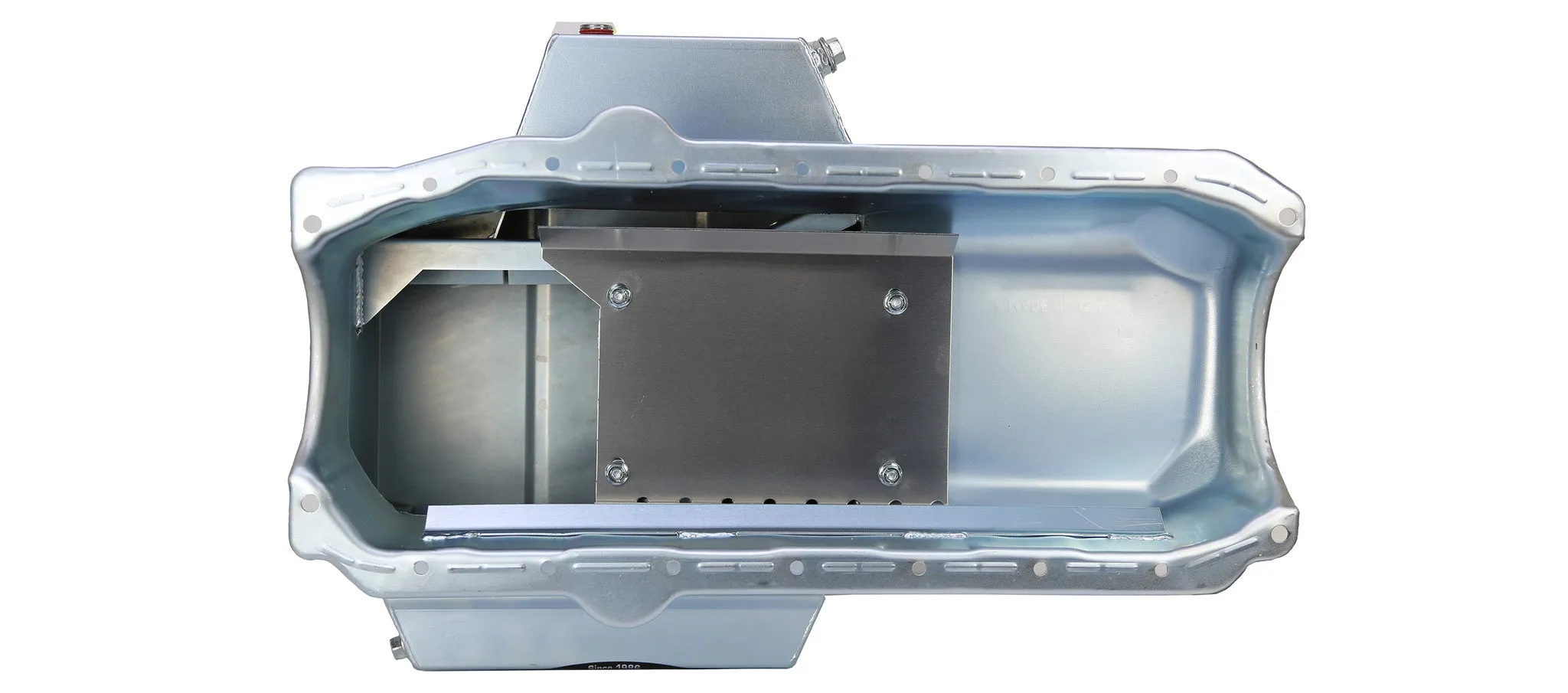

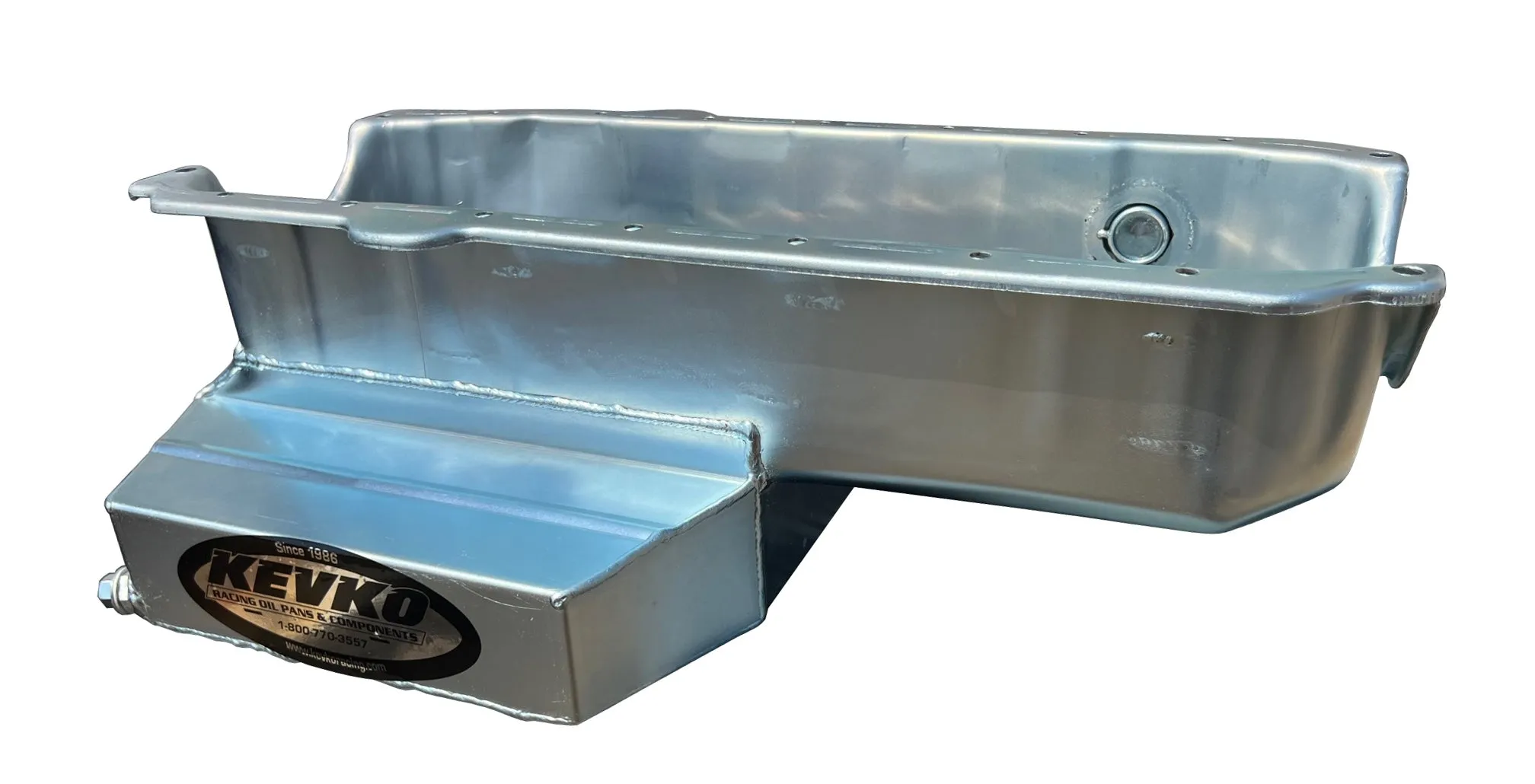

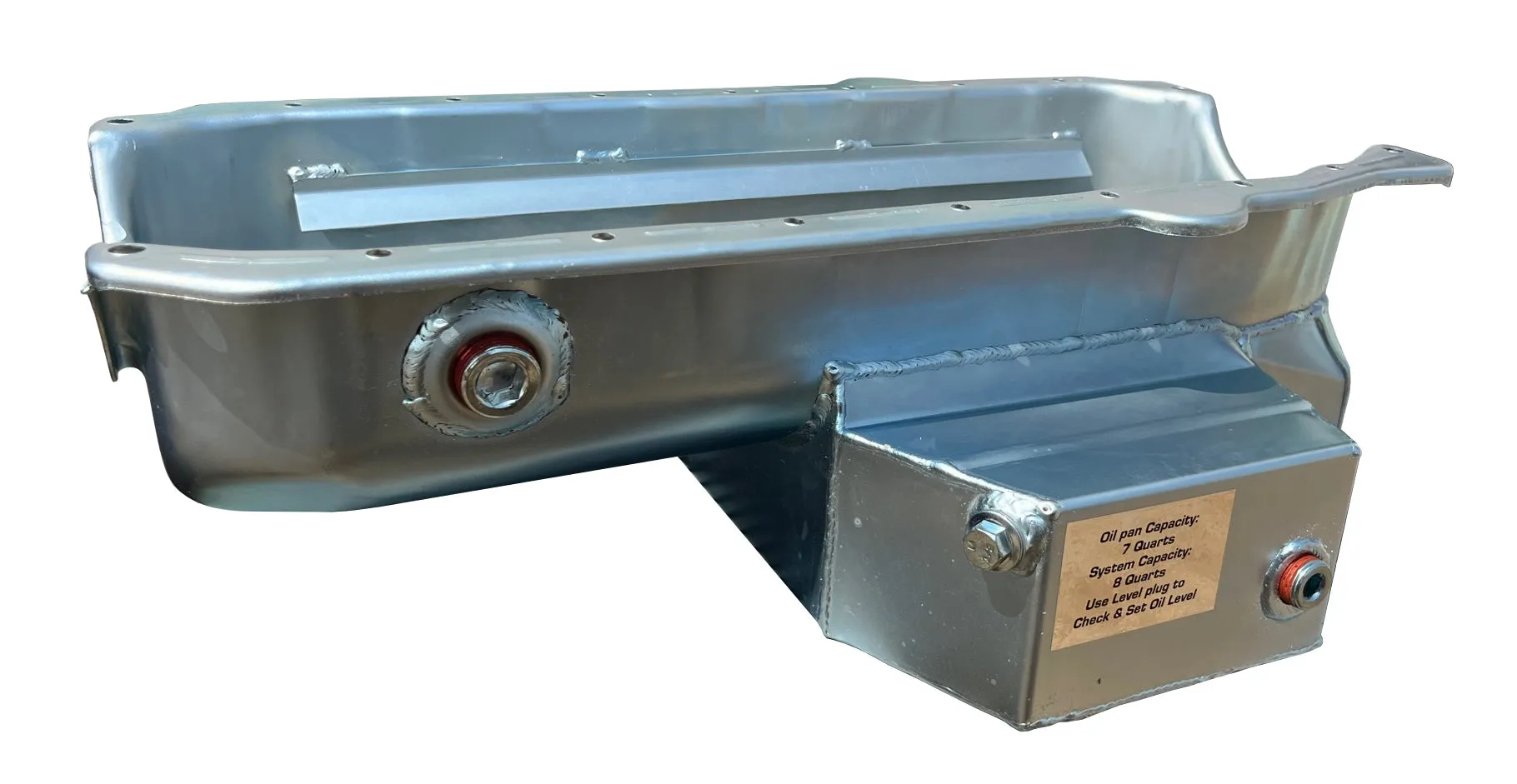

Description: 12" long, 15" wide sump. This pan has 6 gates, a diverter, scraper, and an oil temp fitting. Same as the 1092 without a full length windage tray.



M55, M55A, 10553ST	5/8
M155, 10554ST	3/4
M55HV, 10550ST	5/8
M155HV, 10551ST	¾
10555ST, 10552ST	¾ Bolt On
M99HVS	3/4
